Power Window Main Switch Inspection
>>
Inspection Using An Oscilloscope (Reference)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Using An Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

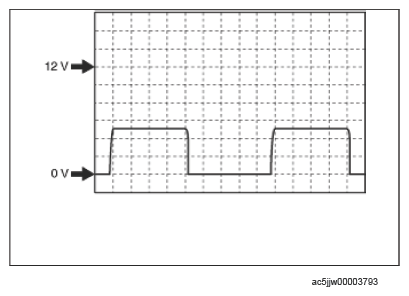

Connection terminal: 2D (+) ↔ body ground (-) 2F (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
