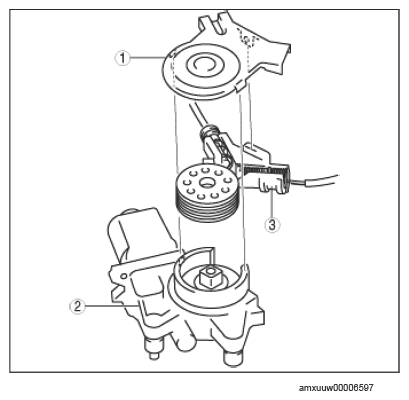

Power Window Regulator Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.PART DESCRIPTION
Component no. Refer to 1 Cover
(See COVER REMOVAL NOTE .)2 Power window motor 3 Regulator - Assemble in the reverse order of disassembly.CAUTION:
- When installing the power window motor, be careful that the cable does not unwind from the drum.
