Power Window System Initialization Procedure
NOTE:
- Initial setting must be performed after performing any of the following procedures.
- Power window main switch is replaced
- Power window subswitch is replaced
- Door glass is removed
- Power window regulator is removed
- Power window motor is removed
- Close the doors.
- Close the convertible top and secure the top lock. (convertible top)
- Switch the ignition ON. (engine on or off)
- Fully close the retractable hardtop. (retractable hardtop)

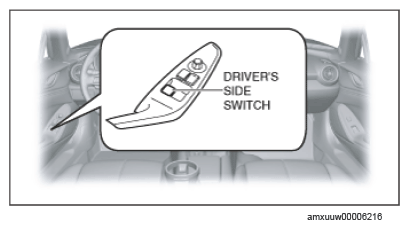

- Operate the driver's side switch on the power window main switch to fully open the door glass (driver's side).
- Operate the driver's side switch on the power window main switch and keep the door glass (driver's side) fully closed for approx. 2 sec.

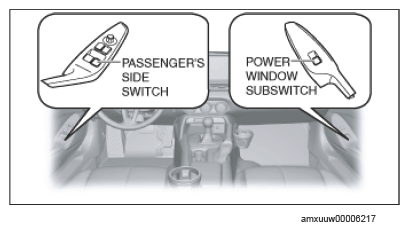

- Operate the passenger's side switch on the power window main switch or the power window subswitch to fully open the door glass. (passenger's side)
- Operate the passenger's side switch on the power window main switch or the power window subswitch and keep the door glass (passenger's side) fully closed for approx. 2 sec.
