Sensor Cover Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

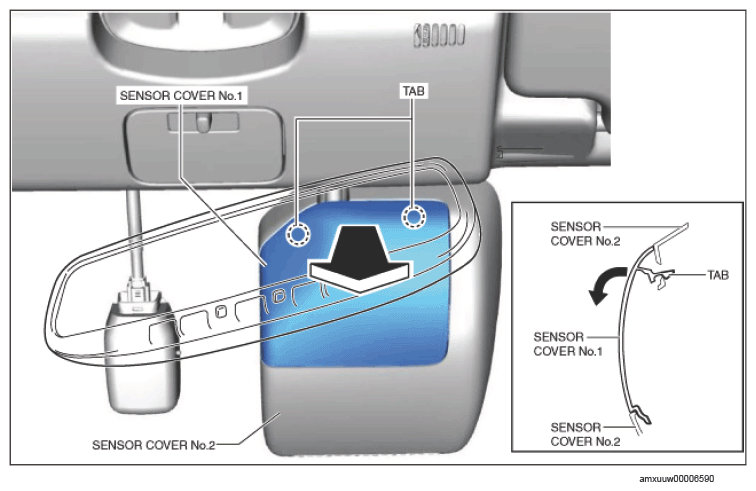

  2. Move sensor cover No. 1 in the direction of the arrow shown in the illustration and detach the tabs from sensor cover No. 2.
    G14595408Courtesy of MAZDA MOTORS CORP.

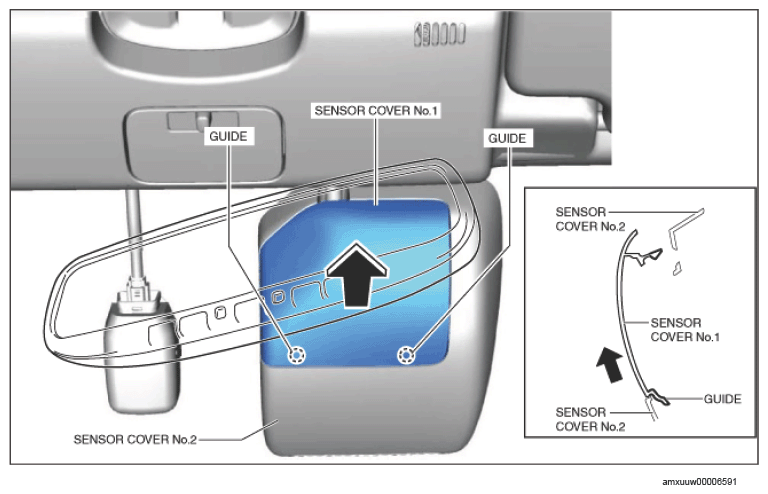

  3. Move sensor cover No. 1 in the direction of the arrow shown in the illustration and remove it while detaching the guides.
    G14595409Courtesy of MAZDA MOTORS CORP.

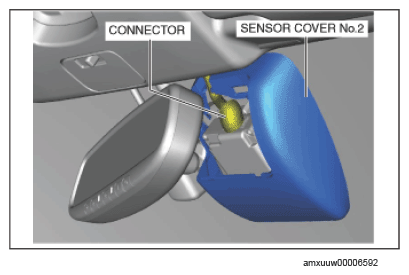

  4. Disconnect the connector.
    G14595410Courtesy of MAZDA MOTORS CORP.

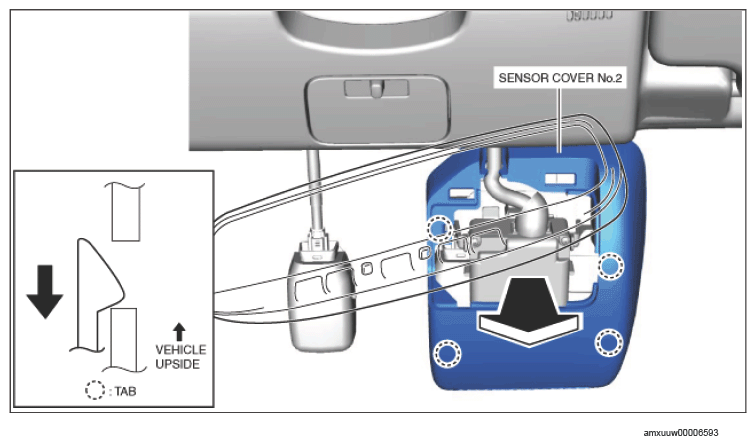

  5. Move sensor cover No. 2 in the direction of the arrow shown in the illustration and remove it while detaching the tabs.
    G14595411Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
