Fuel Injection Control (+) Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• Fuel Injection No. 1: 1DG (+)-body ground (-)
• Fuel Injection No. 2: 1CY (+)-body ground (-)
• Fuel Injection No. 3: 1CU (+)-body ground (-)
• Fuel Injection No. 4: 1DC (+)-body ground (-)

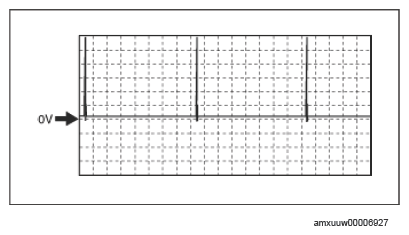

Oscilloscope setting

• 10 V/DIV (Y), 10 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
