Fuel Pump Unit Disassembly/Assembly

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

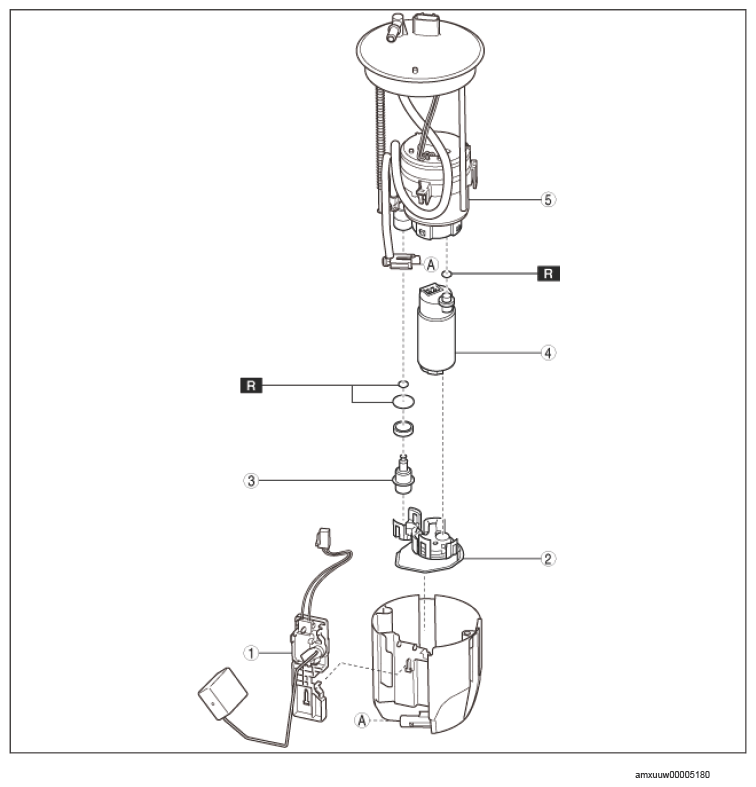

G14588226

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Pressure regulator
4	Fuel pump
5	Fuel filter (high-pressure)
