Pressure Control Valve Installation Note

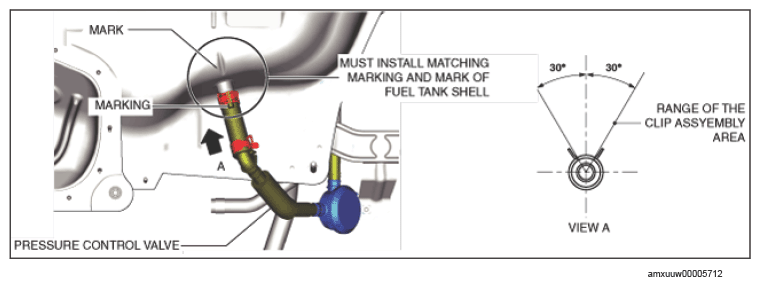

  1. Install the pressure control valve as shown in the illustration.
    G14588246Courtesy of MAZDA MOTORS CORP.
