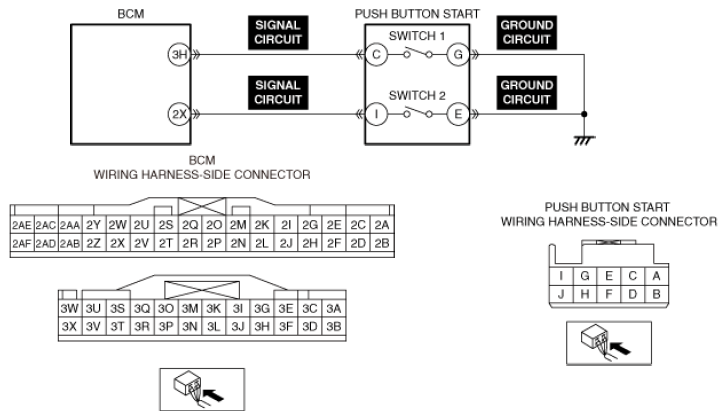

DTC B108C-23: Push Button Start Switch 2 Circuit Malfunction [Body Control Module (BCM)]: Outline

DTC B108C:23 - BODY CONTROL MODULE (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Push button start switch 2 circuit malfunction
Detection condition	The body control module (BCM) detects that the push button start switch 2 is stuck on for 2 min or more.
Fail-safe	Perform the control with the push button start switch 2 turned off.
Possible cause	Push button start connector or terminal malfunction Body control module (BCM) connector or terminal malfunction Short to ground in push button start switch 2 signal circuit Push button start switch 2 malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
