Fuel Pump Control Module Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

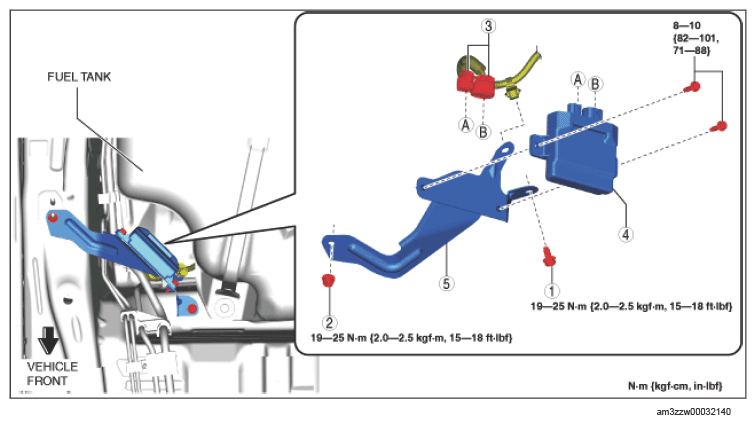

FUEL PUMP CONTROL MODULE COMPONENT OPERATIONS
| Component No: | Refer to |
|---|---|
| 1 | Fuel pump control module bracket installation bolt |
| 2 | Fuel pump control module bracket installation nut |
| 3 | Fuel pump control module connector |
| 4 | Fuel pump control module |
| 5 | Fuel pump control module bracket |
