Ignition System Location Index

NOTE:

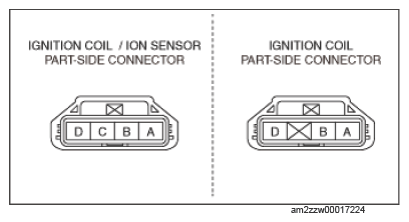

The ion sensor is built into the ignition coil. To verify the applicability of the ion sensor, determine the terminal type from the following figure.

Courtesy of MAZDA MOTORS CORP.

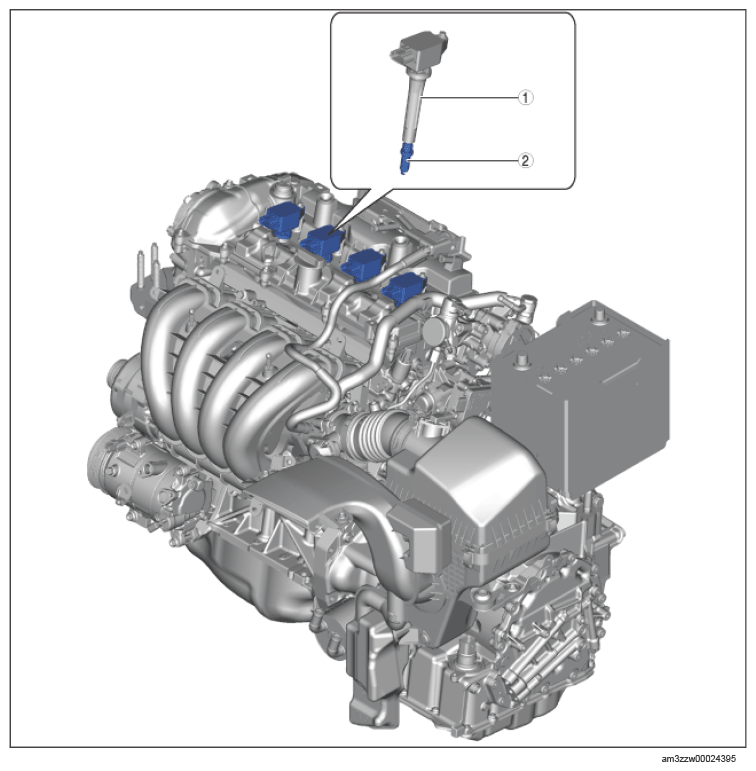

Fig 1: Ignition System Components Location - SKYACTIV-G VIN M

Courtesy of MAZDA MOTORS CORP.

IGNITION SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .) (See IGNITION COIL INSPECTION .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION .) (See SPARK PLUG INSPECTION .)
