DTC B1207-86: Communication Error With SAS Control Module [MAZDA Emergency Assistance Control Module]: Outline

DTC B1207:86 (MAZDA EMERGENCY ASSISTANCE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Communication error with SAS control module
Detection condition	The Mazda EMERGENCY ASSISTANCE control module received invalid event notification signal 2 or could not receive any event notification signal 2 from SAS control module.
Fail-safe	Not applicable

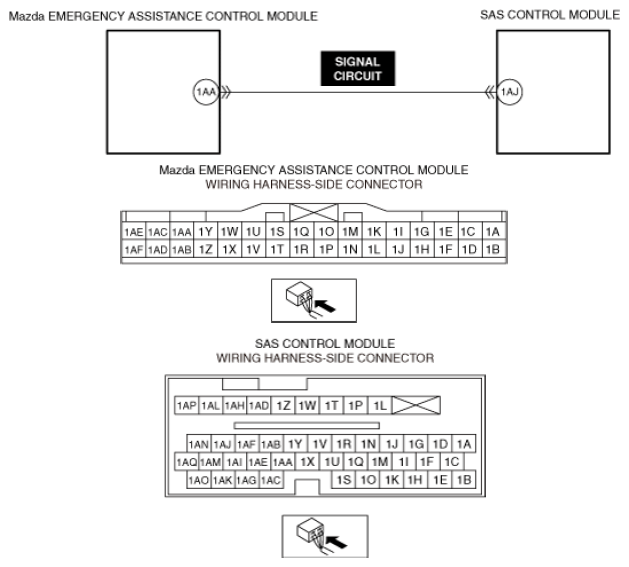

Possible cause	DTCs are stored in the SAS control module. SAS control module malfunction SAS control module connector or terminal malfunction Mazda EMERGENCY ASSISTANCE control module connector or terminal malfunction Open circuit in SAS control module signal circuit Mazda EMERGENCY ASSISTANCE control module malfunction
Courtesy of MAZDA MOTORS CORP.
