Bluetooth® pairing

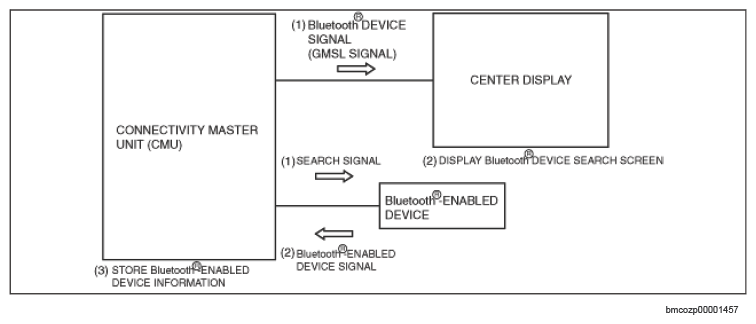

  1. When the CMU receives the operation signal/detects the switch operation, it transmits a search signal to a Bluetooth® enabled device near the CMU and sends (1) the Bluetooth®-device search screen signal to the center display.
  2. The Bluetooth®-enabled device near the CMU sends (2) a Bluetooth® device signal to the CMU. In addition, the center display displays (2) the Bluetooth® device search screen.
  3. The CMU programs (3) the Bluetooth®-enabled device information based on the Bluetooth® device signal.
NOTE:
  • In the following cases, Bluetooth® pairing is canceled.
    • Five (maximum of 5) Bluetooth® devices have been programmed
    • Cancel is selected during Bluetooth® device search screen display
G15668399Courtesy of MAZDA MOTORS CORP.
