Fuel Tank Removal/Installation: AWD: Notes

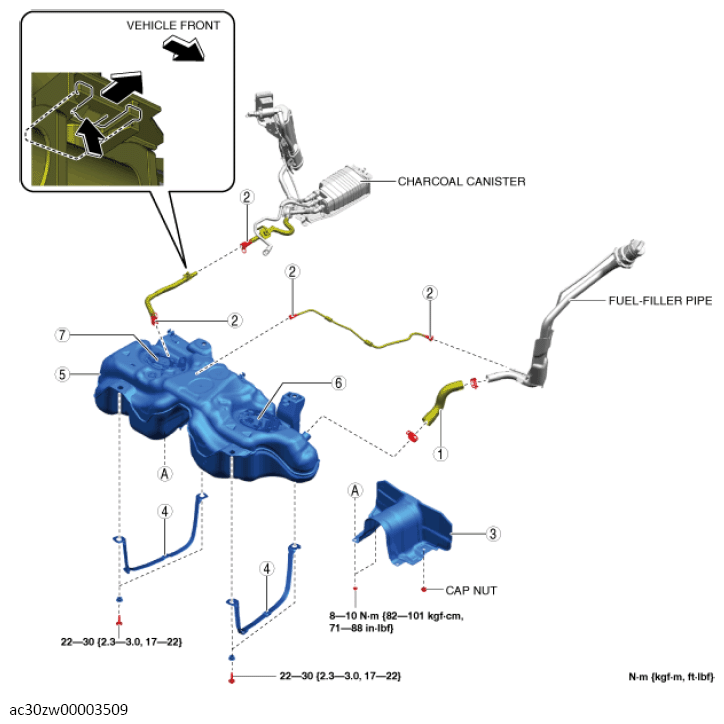

Fig 1: Fuel Tank Components Location With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

FUEL TANK COMPONENT OPERATIONS

Component No.	Refer to
1	Joint hose (See JOINT HOSE INSTALLATION NOTE .)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
3	Fuel tank insulator
4	Fuel tank strap
5	Fuel tank
	(See FUEL TANK REMOVAL NOTE .)
6	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
7	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(US)] .)
