Coupling Component Temperature Sensor Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Disconnect the AWD solenoid connector.

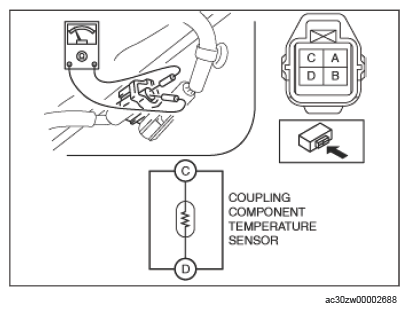

3. Measure resistance between AWD solenoid terminals C and D.

Courtesy of MAZDA MOTORS CORP.

• If the resistance is not within the specification, replace the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION [(US)] .)

Specification

6.085-6.961 kilohms (Temperature at 20°C {68°F})
