Control System Location Index

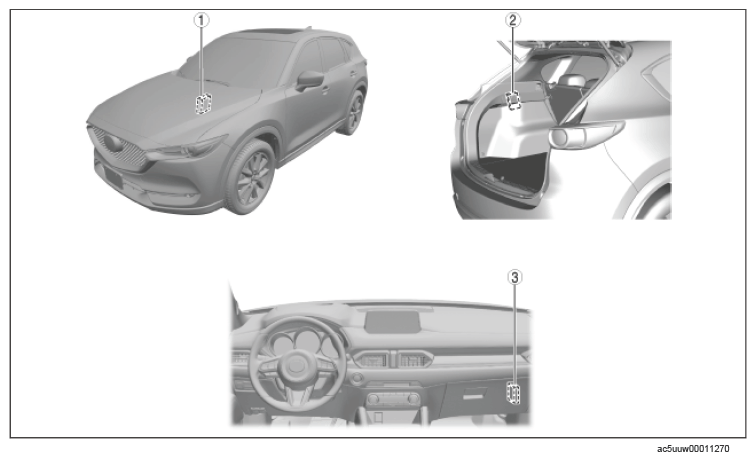

Fig 1: Control System Components Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Front body control module (FBCM) (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA) .)
2	Rear body control module (RBCM) (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION .) (See REAR BODY CONTROL MODULE (RBCM) INSPECTION .) (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA) .) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
3	Gateway unit (GWU) (See GATEWAY UNIT (GWU) REMOVAL/INSTALLATION [TYPE-B] .) (See GATEWAY UNIT (GWU) INSPECTION [TYPE-B] .)
