Vehicle Rear Side

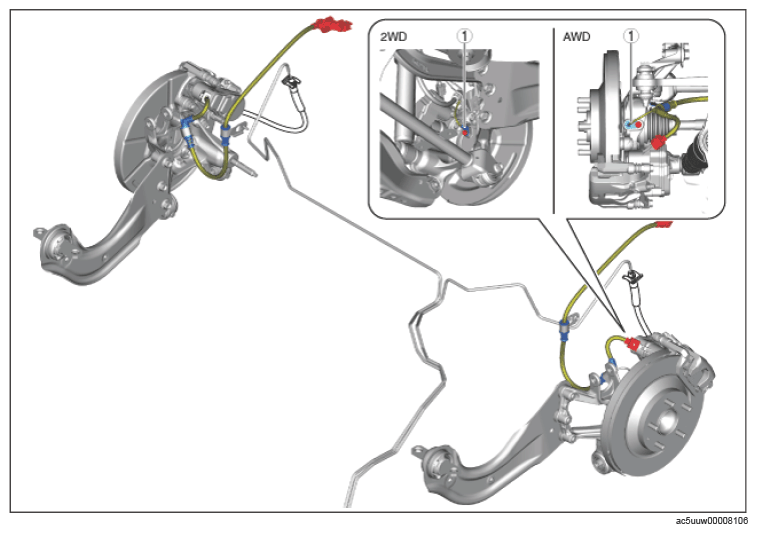

Fig 1: Dynamic Stability Control Components Location - Vehicle Rear Side
G15640037Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Rear ABS wheel-speed sensor
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [AWD] .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD] .)
