Fuel Pump Control Module Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
Disconnect the fuel pump control module connector.
Remove the fuel pump control module.

Courtesy of MAZDA MOTORS CORP.

Install the fuel pump control module using the following procedure.

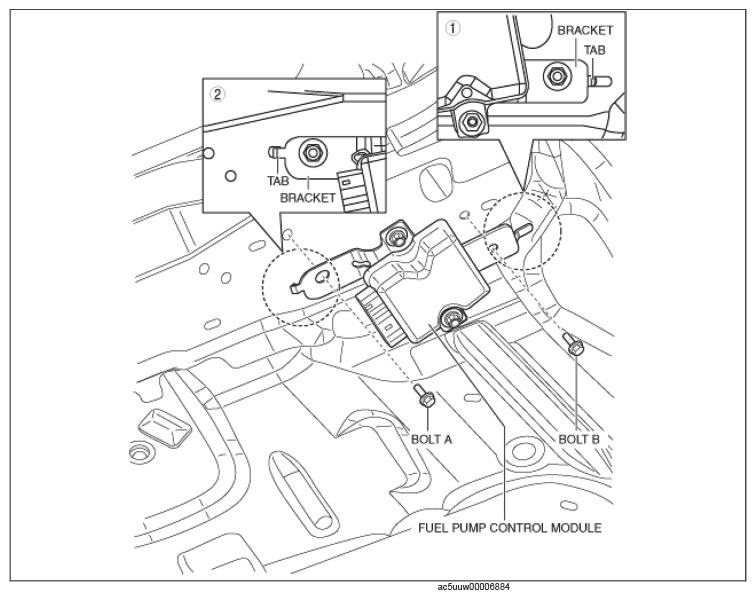

Insert the bracket tabs into the installation holes in the order shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Temporarily tighten bolt A.
Temporarily tighten bolt B.
Tighten bolts A and B to the specified torque.
Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
