Front Buckle Removal/Installation

WARNING:

Handling the front seat (with side air bag module) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the air bag system service warnings and cautions before handling the front seat (with side air bag module).
(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Switch the ignition to off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)

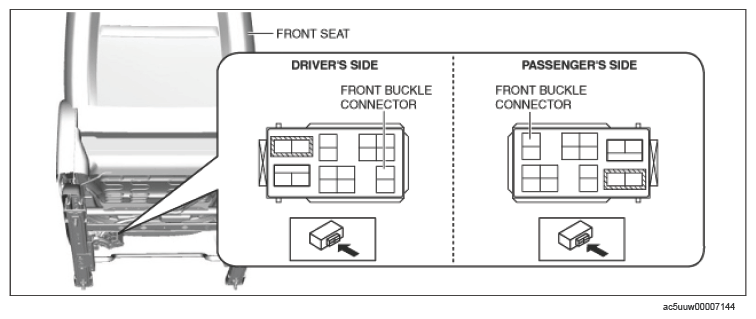

Disconnect the front buckle connector.

Courtesy of MAZDA MOTORS CORP.

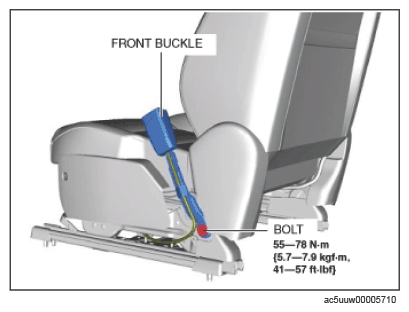

Remove the bolt.

Fig 1: Front Buckle And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front buckle.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system.
  (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.)] .)
