DTC P1888-11/P1888-15: Differential Oil Temperature Sensor Circuit [AWD Control Module]: Notes

DTC P1888:11/P1888:15 (AWD CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P1888:11	Differential oil temperature sensor circuit
DTC P1888:15
DETECTION CONDITION	P1888:11 Short to ground is detected in differential oil temperature sensor circuit P1888:15 Short to battery or open circuit is detected in differential oil temperature sensor circuit
FAIL-SAFE FUNCTION	Control disabled. AWD warning light: Illuminated

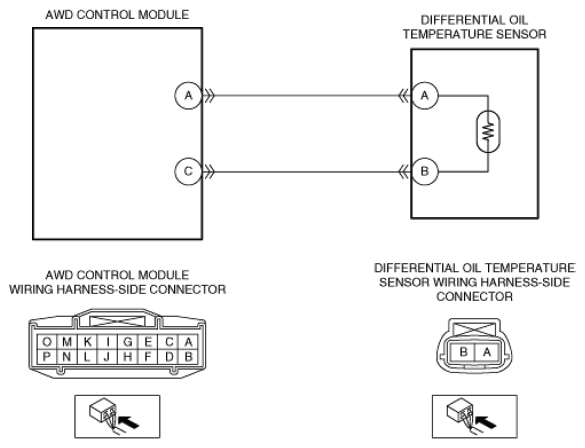

POSSIBLE CAUSE	Differential oil temperature sensor malfunction Open circuit, or short to power or ground between AWD control module terminal A and differential oil temperature sensor terminal A Open circuit or short to power between AWD control module terminal C and differential oil temperature sensor terminal B AWD control module malfunction Poor connection of connectors (female terminals)
Courtesy of MAZDA MOTORS CORP.
