Control System Location Index

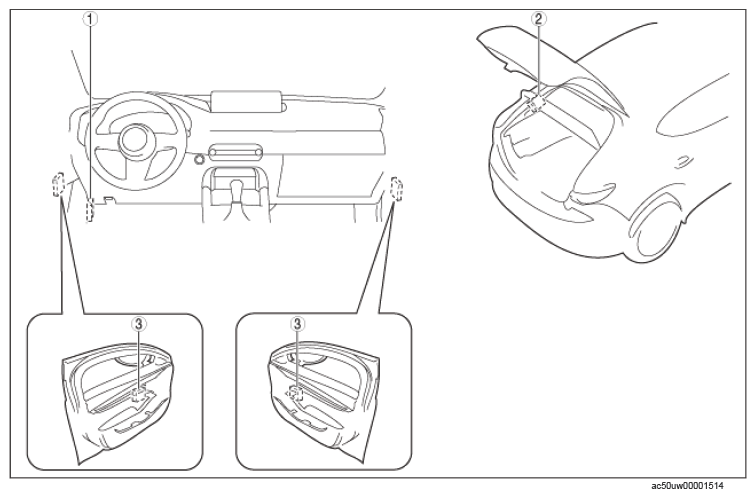

Fig 1: Control System Components Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) INSPECTION .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING .) (See VEHICLE CONTROL MODULE (VCM) OPERATION RECORD .)
2	Electrical supply unit (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION .) (See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION .) (See ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION .)
3	Door electrical supply unit (See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION .) (See DOOR-ELECTRICAL SUPPLY UNIT INSPECTION .)
