Front Ultrasonic Sensor Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

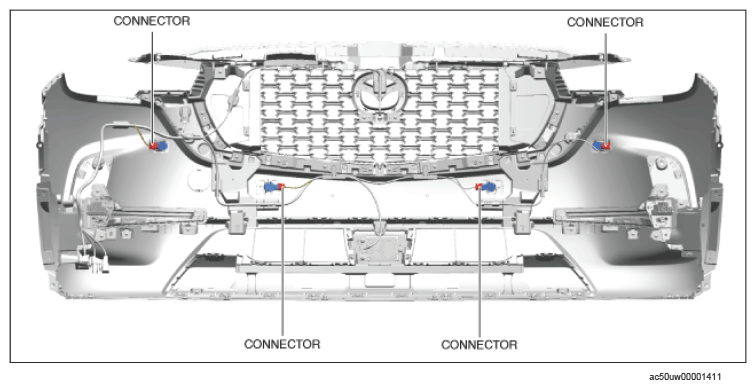

- Disconnect the connectors.

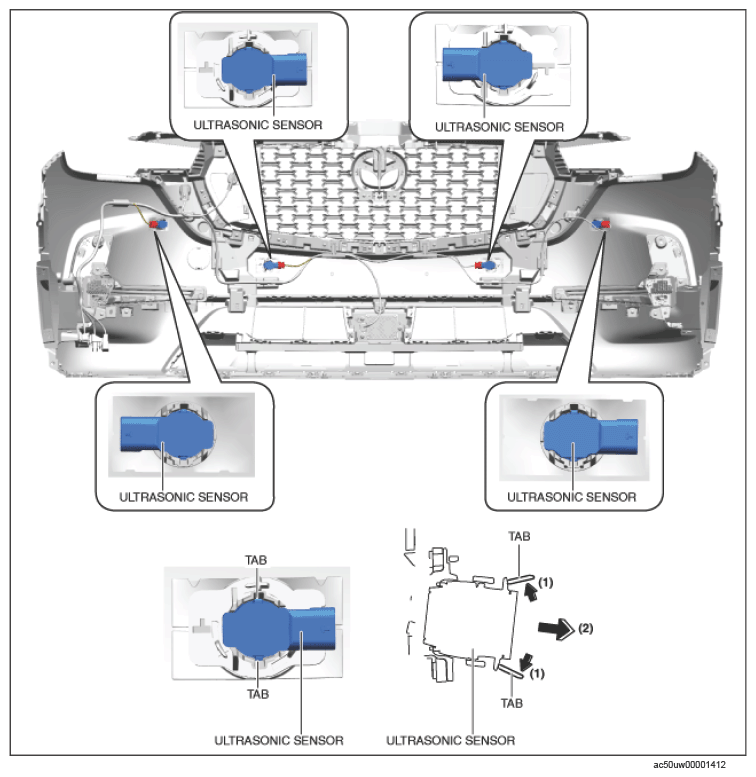

- Pull the front ultrasonic sensor in the direction of arrow (2) while moving the tabs of the retainer in the direction of arrows (1) shown in the figure below, and remove it.
- Install in the reverse order of removal.
- Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
- Perform the front radar sensor aiming. (See FRONT RADAR SENSOR AIMING .)
