Fuel Pump Control Module Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the trunk mat. (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

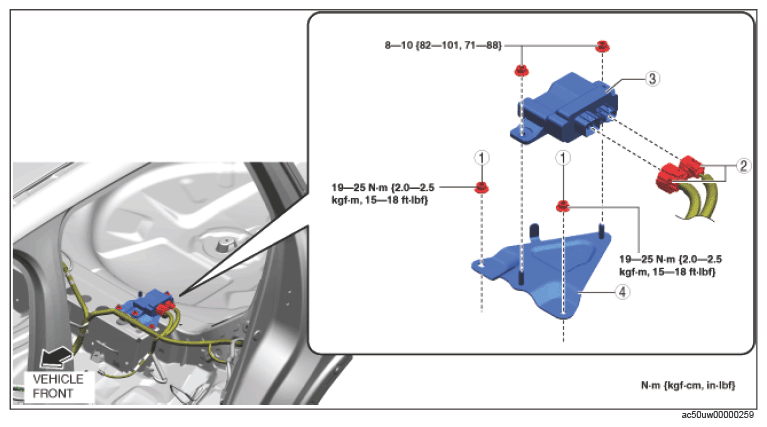

FUEL PUMP CONTROL MODULE COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Fuel pump control module bracket installation nut |
| 2 | Fuel pump control module connector |
| 3 | Fuel pump control module |
| 4 | Fuel pump control module bracket |
