Tie Rod Assembly Note

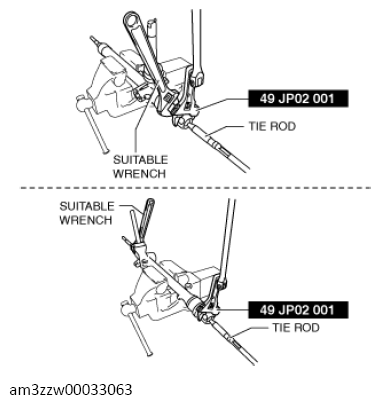

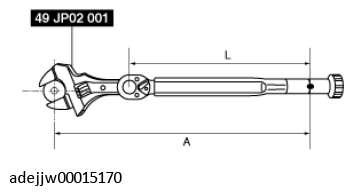

- Install the SST to the torque wrench as shown in the figure below, set it on the tie rod, and then measure dimensions A and L shown in the figure below.
- Tighten the tie rod using the SST after calculating the tightening torque using the following formula.
Formula
Tx (L/A)
T: Tightening torque
L: Torque wrench effective length
A: Dimension A measured in Step 1
