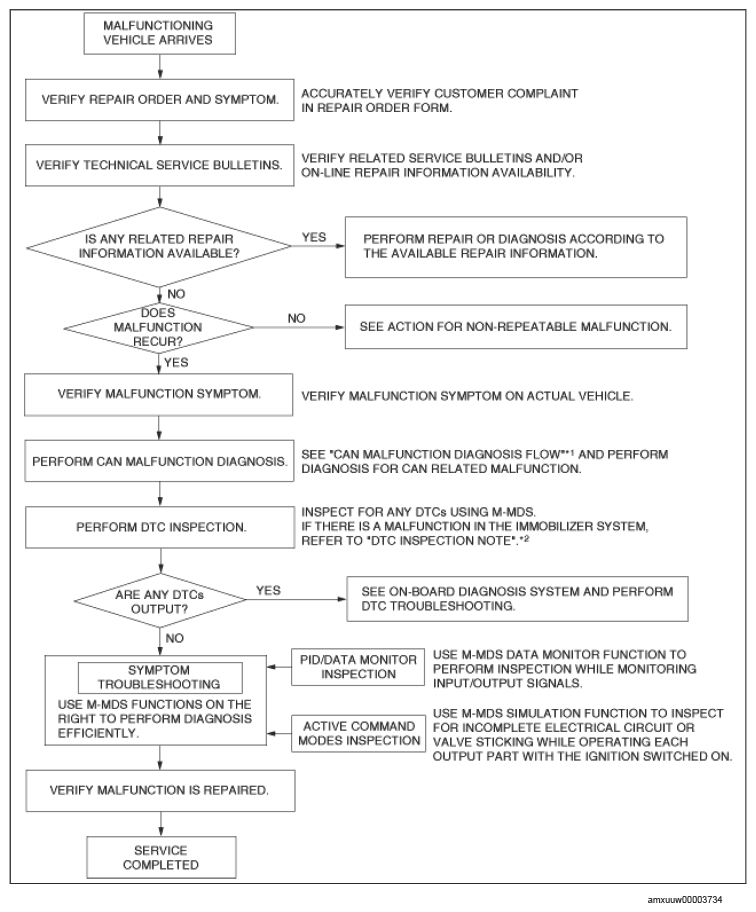

Troubleshooting Procedure

G14595085Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See DTC Inspection Note .)
