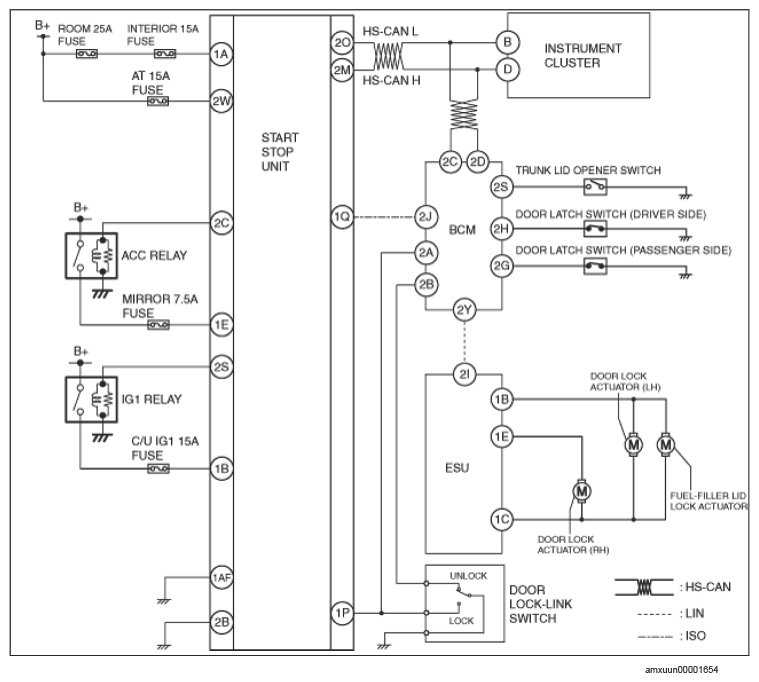

On-Board Diagnostic Wiring Diagram [Start Stop Unit]
>>
Advanced Keyless Entry System (With Advanced Keyless Entry System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

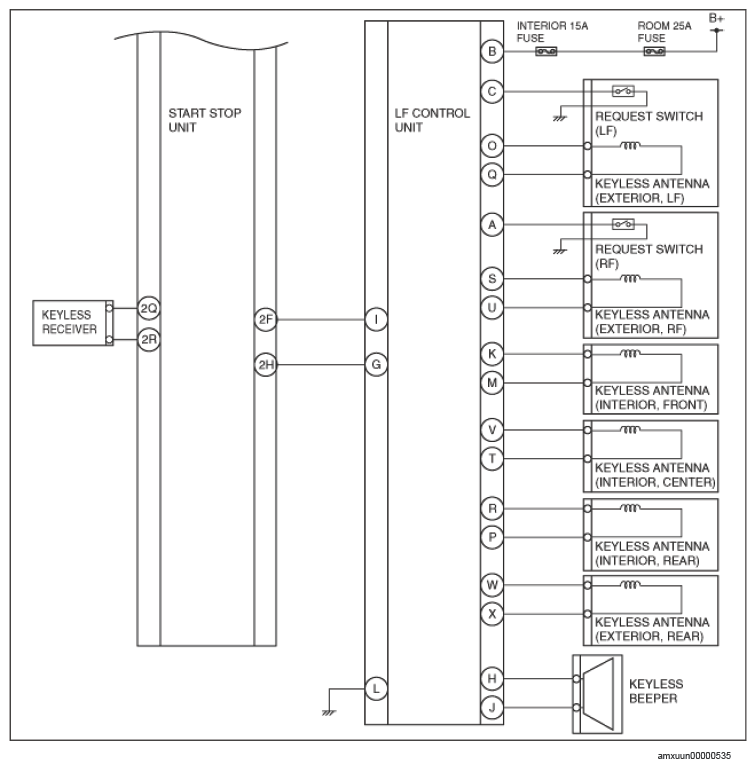

Advanced Keyless Entry System (With Advanced Keyless Entry System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
