Nut Installation Note

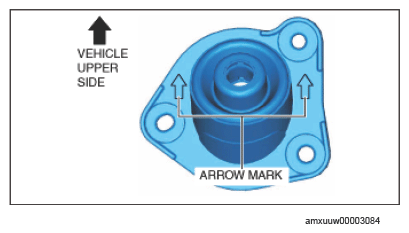

  1. Install the nuts with the arrow marks on the dust cover pointed to the upper side of the vehicle.
G14589620Courtesy of MAZDA MOTORS CORP.
