Front side switch (LF)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION )

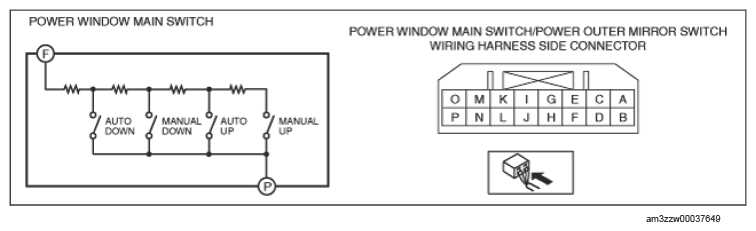

- Verify that the resistance between power window main switch terminals F and P is as indicated in the table.SWITCH POSITION AND RESISTANCE SPECIFICATIONS
Switch Position Resistance (ohm) Terminal Auto Down 297.0-303.0 F-P Manual Down 445.5-454.5 Auto Up 683.1-696.9 Manual Up 1069.2-1090.8 - If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
