Fuel Pump Unit Removal/Installation: Notes
Special Service Tool (SST)
| 1.: Mazda SST number 2.: Global SST number |
|
| 1: 49 UN31 0123 2: 310-123 Wrench |
|
Replacement Part
| Packing Quantity: 1 Location of use: Fuel pump unit |
WARNING:
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "Fuel Line Safety Procedure" to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)WARNING:
- If the fuel gauge level indicates 8/16 or more, refer to the FUEL DRAINING PROCEDURE and drain the fuel.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

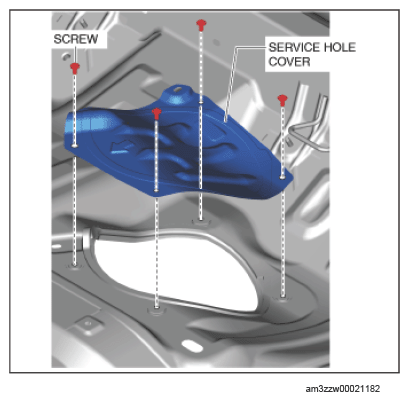

- Remove the service hole cover.

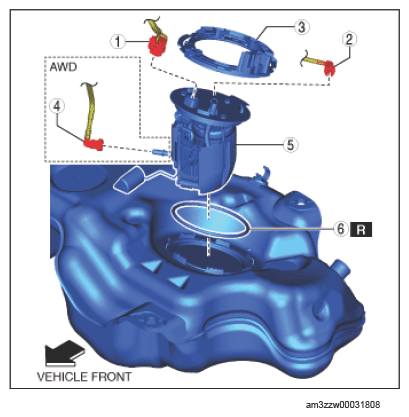

- Remove in the order indicated in the table.COMPONENT OPERATIONS
Component no. Refer to 1 Fuel pump unit connector 2 Quick release connector
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)3 Set plate component
(See Set Plate Component Removal Note .)
(See Set Plate Component Installation Note .)4 Quick release connector (AWD)
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)5 Fuel pump unit 6 Packing - Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
