Clutch Unit Removal/Installation: Notes

Special Service Tool (SST)

49 E011 1A0 Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

49 SE01 310A Clutch disc center tool

Courtesy of MAZDA MOTORS CORP.

49 1285 071 Bearing puller

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Lock bolt	Pilot bearing
Quantity: 6	Quantity: 1
Location of use: Dual-mass flywheel	Location of use: Dual-mass flywheel

Oil and Chemical Type

Grease Type: Molybdenum grease

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R] .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Add the specified amount of manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R] .)

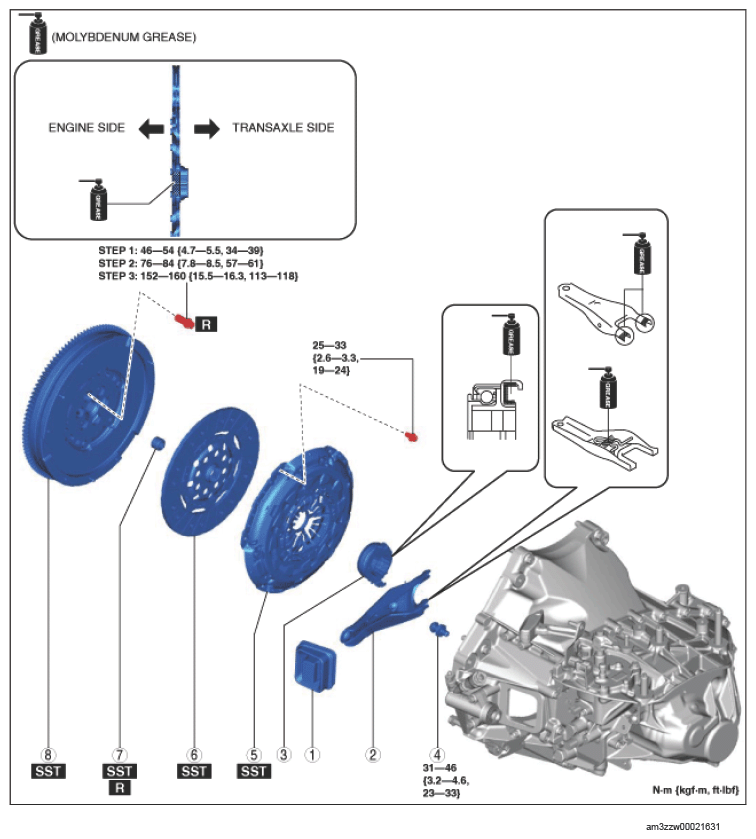

   Fig 1: Clutch Unit Components Location With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   COMPONENT OPERATIONS



   Component no.	Refer to
   1	Boot
   2	Clutch release fork
   3	Clutch release collar
   4	Pivot pin
   5	Clutch cover (See CLUTCH COVER AND CLUTCH DISC REMOVAL NOTE .) (See CLUTCH DISC AND CLUTCH COVER INSTALLATION NOTE .)
   6	Clutch disc (See CLUTCH COVER AND CLUTCH DISC REMOVAL NOTE .) (See CLUTCH DISC AND CLUTCH COVER INSTALLATION NOTE .)
   7	Pilot bearing (See PILOT BEARING REMOVAL NOTE .) (See PILOT BEARING INSTALLATION NOTE .)
   8	Dual-mass flywheel (See DUAL-MASS FLYWHEEL REMOVAL NOTE .) (See DUAL-MASS FLYWHEEL INSTALLATION NOTE .)
