Starter Interlock Switch Installation Note

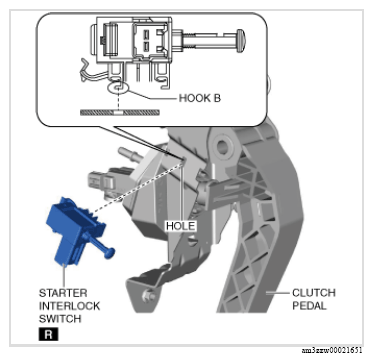

- Insert hook B of a new starter interlock switch into the clutch pedal hole.

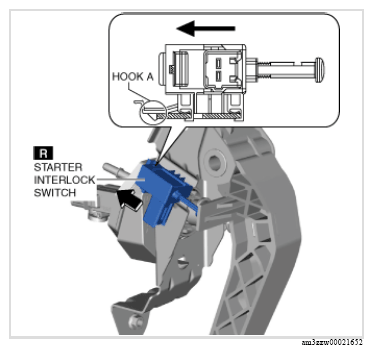

- While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure below.

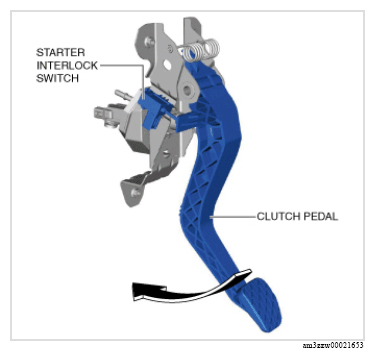

- Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.
