Selection switch indicator
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Perform the following procedure.

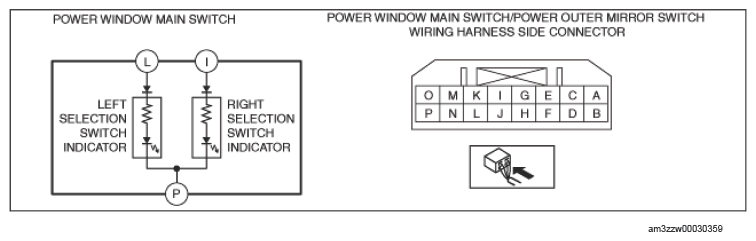

- Left selection switch indicator: Apply battery positive voltage to power window main switch terminal L, and connect terminal P to ground.
- Right selection switch indicator: Apply battery positive voltage to power window main switch terminal I, and connect terminal P to ground.
- Verify that the LED is turned on.
- If the LED does not turn on, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
