Back-Up Light Switch Removal/Installation

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
   • Air cleaner cover
   • Air cleaner element
   • Fresh-air duct
   • Air cleaner case
   • Air hose
   • Resonance chamber
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

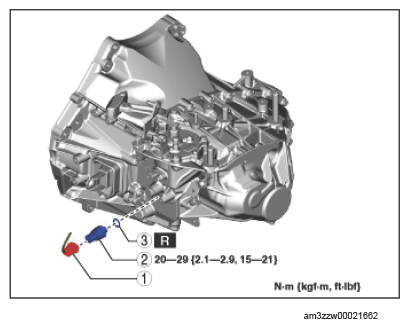

Fig 1: Back-Up Light Switch Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
