Control Cable Ends (Transaxle Side) Installation Note

  1. Verify that the shift control module is in the neutral position.
    CAUTION:

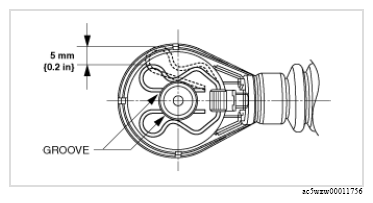

    • Pull the lock pin within the range shown in the figure below. If the lock pin is pulled excessively, it could deform and no longer function.
    G13176465Courtesy of MAZDA MOTORS CORP.

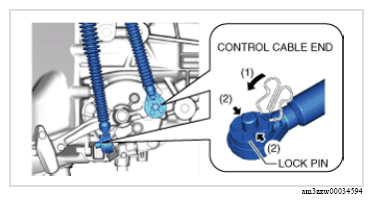

  2. Install the lock pin to the groove of the control cable end.
    G13176466Courtesy of MAZDA MOTORS CORP.
  3. Connect the control cable end to the manual transaxle.
