Position Memory Switch Inspection
NOTE:
- The position memory switch is integrated with the cluster switch No. 2.
- For the position memory switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the position memory switch. (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .)

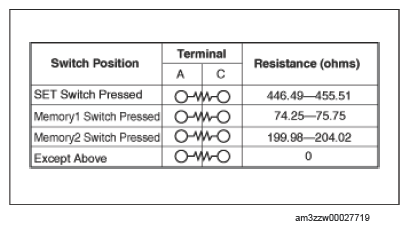

- Verify that the resistance and continuity between the position memory switch terminals is as indicated in the table.
- If not as indicated in the table, replace the position memory switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION
.)
- If not as indicated in the table, replace the position memory switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION
.)
