Tie Rod Assembly Note

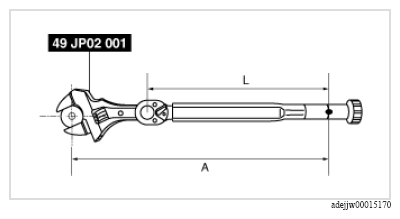

1. Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and then measure dimensions A and L shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

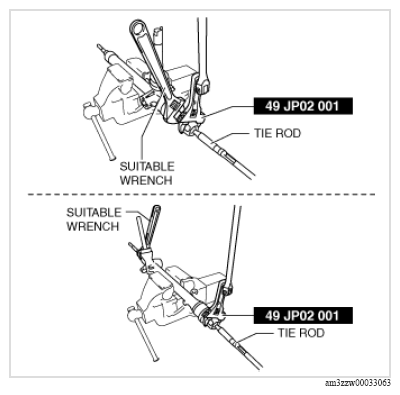

2. Tighten the tie rod using the SST after calculating the tightening torque using the following formula.

Courtesy of MAZDA MOTORS CORP.

Formula

Tx (L/A)

T: Tightening torque

L: Torque wrench effective length

A: Dimension A measured in Step 1
