Control System Location Index (VIN Y)

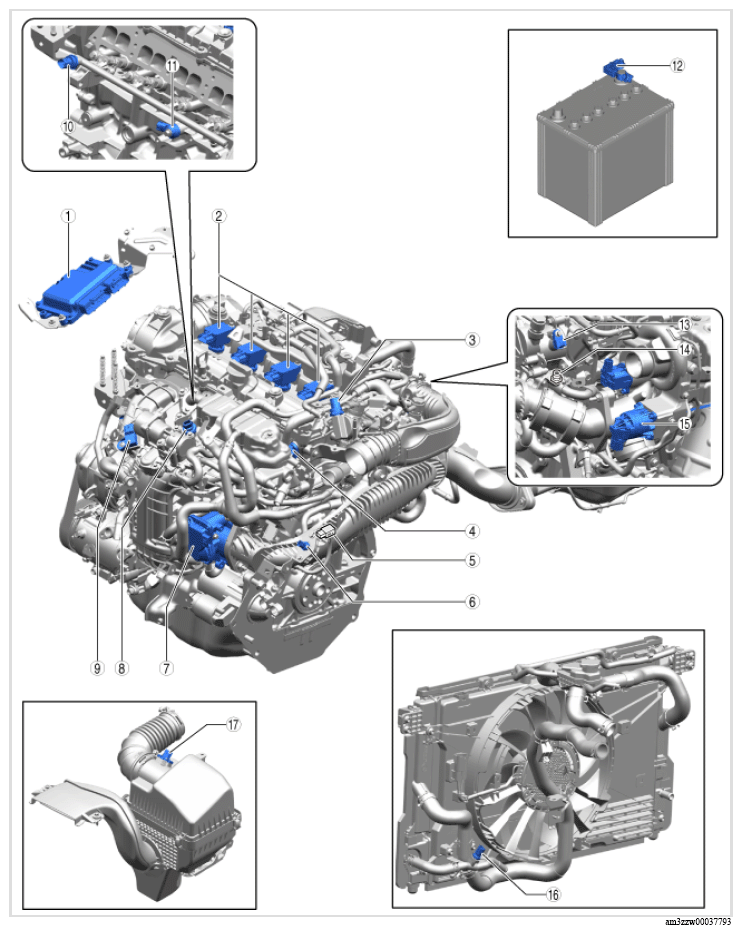

Fig 1: Control System Components Location - (VIN Y) (1 Of 2)

G16372914

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATION

Component no.	Refer to
1	PCM (BARO sensor, PCM temperature sensor) (See PCM REMOVAL/INSTALLATION (VIN Y) .) (See PCM INSPECTION (VIN Y) .) (Refer to CONFIGURATION.) .) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION (VIN Y) .)
2	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See ION SENSOR INSPECTION (VIN Y) .)
3	Low fuel pressure sensor/Fuel temperature sensor (See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See LOW FUEL PRESSURE SENSOR INSPECTION (VIN Y) .) (See FUEL TEMPERATURE SENSOR INSPECTION (VIN Y) .)
4	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION (VIN Y) .)
5	Boost pressure sensor (See BOOST PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See BOOST PRESSURE SENSOR INSPECTION (VIN Y) .)
6	Boost air temperature sensor (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See BOOST AIR TEMPERATURE SENSOR INSPECTION (VIN Y) .)
7	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See THROTTLE POSITION (TP) SENSOR INSPECTION (VIN Y) .)
8	Exhaust gas pressure sensor (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See EXHAUST GAS PRESSURE SENSOR INSPECTION (VIN Y) .)
9	MAP sensor/IAT sensor No. 2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION (VIN Y) .) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION (VIN Y) .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION (VIN Y) .)
10	High fuel pressure sensor (See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See HIGH FUEL PRESSURE SENSOR INSPECTION (VIN Y) .)
11	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION (VIN Y) .) (See KNOCK SENSOR (KS) INSPECTION (VIN Y) .)
12	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See CURRENT SENSOR INSPECTION (VIN Y) .)
13	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION (VIN Y) .)
14	ECT sensor No. 1 (See ECT SENSOR NO. 1 REMOVAL/INSTALLATION (VIN Y) .) (See ECT SENSOR NO. 1 INSPECTION (VIN Y) .)
15	Wastegate valve position sensor (See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See WASTEGATE VALVE POSITION SENSOR INSPECTION (VIN Y) .)
16	ECT sensor No. 2 (See ECT SENSOR NO. 2 REMOVAL/INSTALLATION (VIN Y) .) (See ECT SENSOR NO. 2 INSPECTION (VIN Y) .)
17	MAF sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION (VIN Y) .) (See MASS AIR FLOW (MAF) SENSOR INSPECTION (VIN Y) .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION (VIN Y) .)

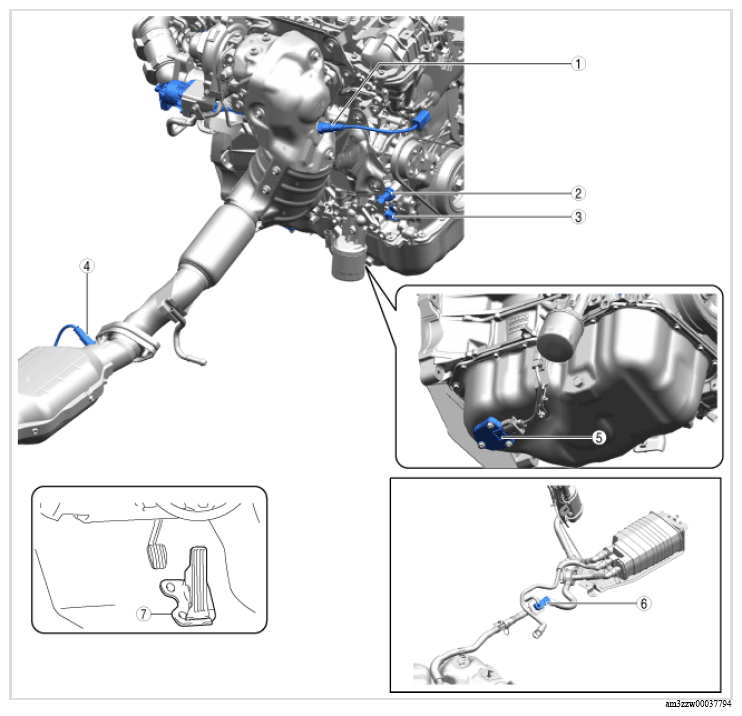

Fig 2: Control System Components Location - (VIN Y) (2 Of 2)

G16372915

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATION

Component no.	Refer to
1	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION (VIN Y) .)
2	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See ENGINE OIL PRESSURE SENSOR INSPECTION (VIN Y) .) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION (VIN Y) .)
3	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION (VIN Y) .)
4	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION (VIN Y) .) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION (VIN Y) .)
5	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See ENGINE OIL LEVEL SENSOR INSPECTION (VIN Y) .)
6	Fuel tank pressure sensor (U.S.A. and CANADA) (See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See FUEL TANK PRESSURE SENSOR INSPECTION (VIN Y) .)
7	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION (VIN Y) .) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION (VIN Y) .)
