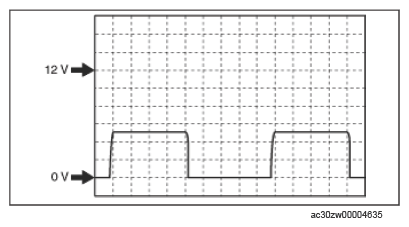

Inspection Using An Oscilloscope (Reference)

Courtesy of MAZDA MOTORS CORP.

Connection terminal: 1I (+) ↔ body ground (-) 1B (+) ↔ body ground (-) 1A (+) ↔ body ground (-) 1H (+) ↔ body ground (-).
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
