Total Toe-In Adjustment
WARNING: This page is about a different car, the 2024 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

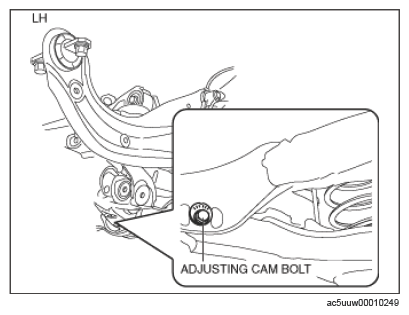

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.TOTAL TOE-IN ADJUSTMENT
Left wheel Right wheel Toe-out direction Clockwise Counterclockwise Toe-in direction Counterclockwise Clockwise - Tighten the nut.
Tightening torque
84-101 N.m {8.6-10 kgf.m, 62-74 ft.lbf}
