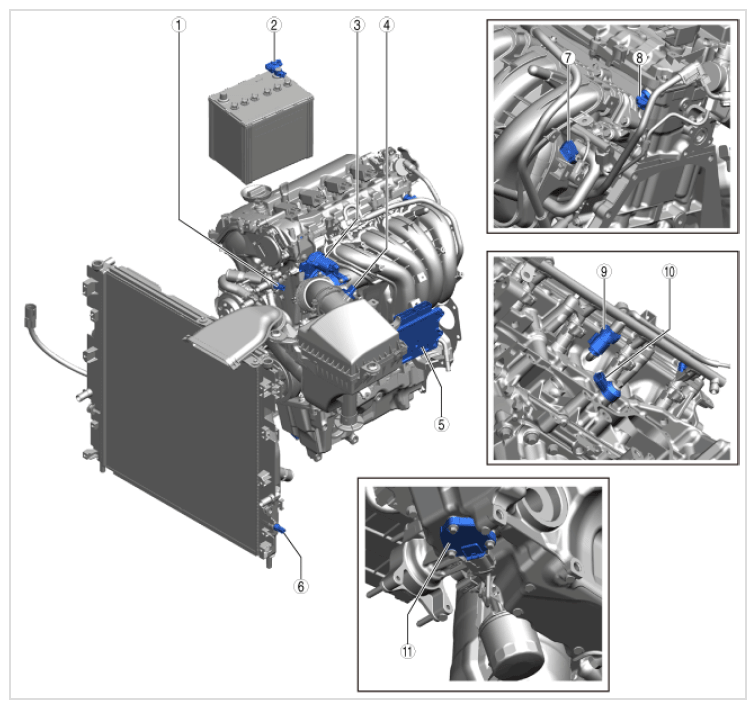

| 1 |
ECT sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [PYUL] ) |
| 2 |
Current sensor
(See CURRENT SENSOR REMOVAL/INSTALLATION [PYUL] )
(See CURRENT SENSOR INSPECTION [PYUL] ) |
| 3 |
Throttle position sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [PYUL]
)
(See THROTTLE POSITION (TP) SENSOR INSPECTION [PYUL]
) |
| 4 |
MAF/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 1 REMOVAL/INSTALLATION [PYUL]
)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION [PYUL]
)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [PYUL]
) |
| 5 |
ECM (integrated with BARO sensor)
(See ECM REMOVAL/INSTALLATION [PYUL] )
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [PYUL] )
(See ENGINE OIL DATA RESET [PYUL] ) |
| 6 |
Coolant temperature sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [PYUL] ) |
| 7 |
MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 2 REMOVAL/INSTALLATION [PYUL]
)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [PYUL]
)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [PYUL]
) |
| 8 |
Intake camshaft position sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [PYUL] ) |
| 9 |
Fuel pressure sensor
(See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [PYUL] )
(See FUEL PRESSURE SENSOR INSPECTION [PYUL] ) |
| 10 |
Knock sensor
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [PYUL]
)
(See KNOCK SENSOR (KS) INSPECTION [PYUL]
) |
| 11 |
Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [PYUL] )
(See ENGINE OIL LEVEL SENSOR INSPECTION [PYUL] ) |
