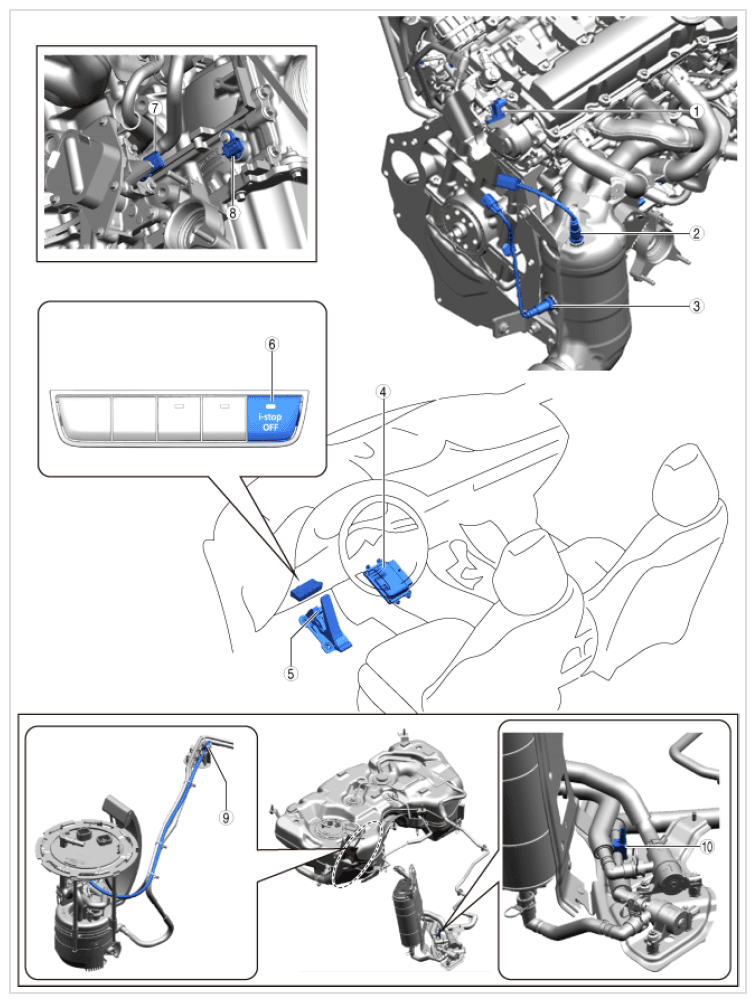

| 1 |
Exhaust camshaft position sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [PYUL] ) |
| 2 |
A/F (air/fuel ratio) sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [PYUL] ) |
| 3 |
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [PYUL]
)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION [PYUL]
) |
| 4 |
PCM (integrated with BARO sensor)
(See PCM REMOVAL/INSTALLATION [PYUL]
)
(See PCM REMOVAL/INSTALLATION [PYUL]
)
(See PCM INSPECTION [PYUL]
)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [PYUL] )
(See ENGINE OIL DATA RESET [PYUL] ) |
| 5 |
Accelerator pedal position sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [PYUL] ) |
| 6 |
i-stop OFF switch
(See I-STOP OFF SWITCH REMOVAL/INSTALLATION [PYUL]
)
(See I-STOP OFF SWITCH INSPECTION [PYUL]
) |
| 7 |
Engine oil temperature sensor/engine oil pressure sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [PYUL] )
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION [PYUL] )
(See ENGINE OIL PRESSURE SENSOR INSPECTION [PYUL] ) |
| 8 |
Crankshaft position sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [PYUL] )
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [PYUL] ) |
| 9 |
Fuel vapor temperature sensor
(See FUEL VAPOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [PYUL]
)
(See FUEL VAPOR TEMPERATURE SENSOR INSPECTION [PYUL] ) |
| 10 |
Fuel tank pressure sensor
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION [PYUL] )
(See FUEL TANK PRESSURE SENSOR INSPECTION [PYUL] ) |
