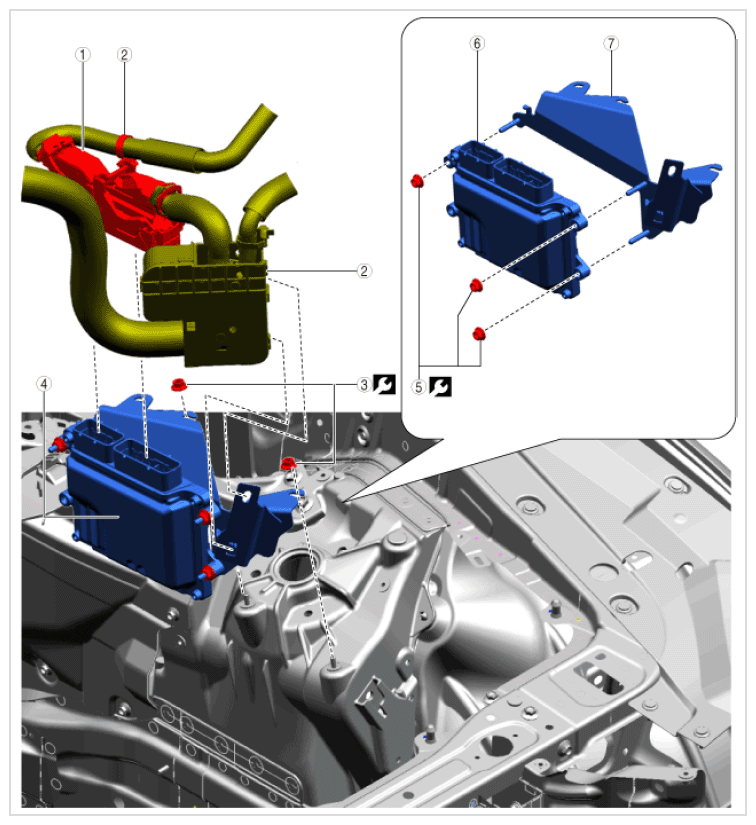

Remove ECM: Notes
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Connector (See CONNECTOR CONNECTION NOTE ) |
- |
| 2 | Wiring harness clip | - |
| 3 | Nut | 9 N.m {91 kgf.cm, 79 in.lb} |
| 4 | ECM component | - |
| 5 | Nut | 9 N.m {91 kgf.cm, 79 in.lb} |
| 6 | ECM | - |
| 7 | Bracket | - |
