Remove Battery Cap

  1. Remove in the order indicated in the table.

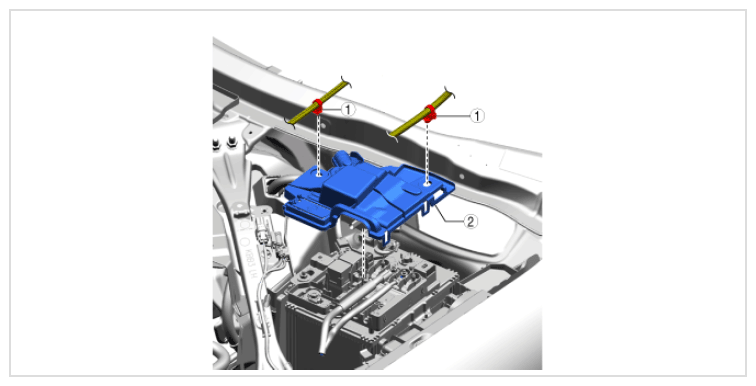

G16707258Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Clip
2 Battery cap
