Remove Driver Side Front Mudguard

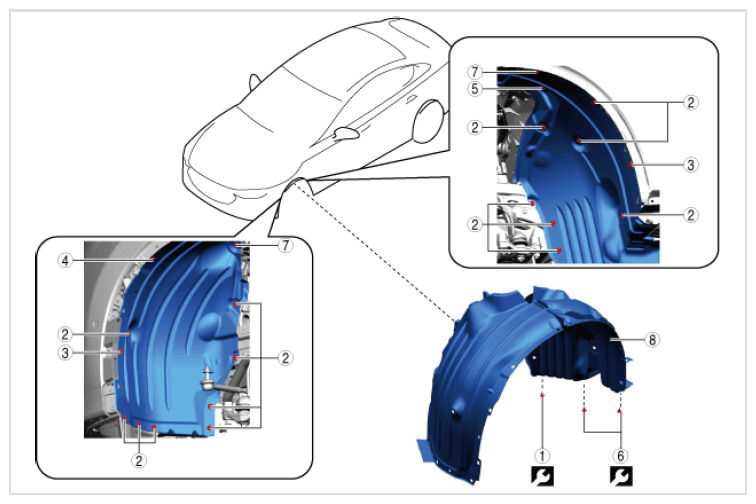

- Remove using the procedure shown in the figure below.
- the figure below shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 11 N.m {110 kgf.cm, 95 in.lb} |
| 2 | Fastener | - |
| 3 | Fastener | - |
| 4 | Fastener | - |
| 5 | Fastener | - |
| 6 | Bolt | 11 N.m {110 kgf.cm, 95 in.lb} |
| 7 | Fastener | - |
| 8 | Front mudguard | - |
