Service plug installation note

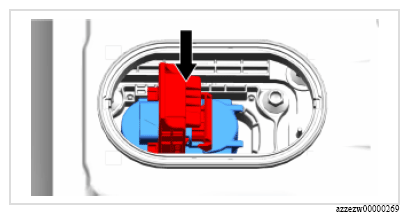

  1. Insert the service plug completely.
    G16695038Courtesy of MAZDA MOTORS CORP.

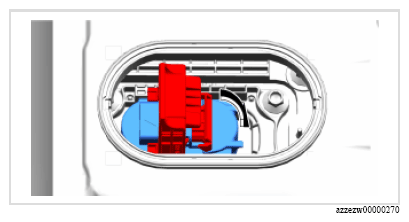

  2. Press the lever down completely.
    G16695039Courtesy of MAZDA MOTORS CORP.

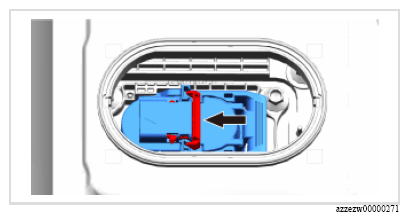

  3. Slide the lock in the direction of the arrow shown in the figure.
G16695040Courtesy of MAZDA MOTORS CORP.
