Service plug removal note

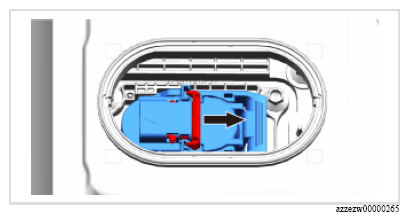

  1. Slide the lock in the direction of the arrow shown in the figure. (It will not be completely pulled out).
    G16695034Courtesy of MAZDA MOTORS CORP.

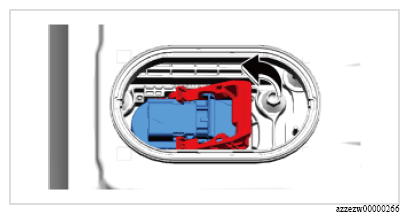

  2. Raise the lever.
    G16695035Courtesy of MAZDA MOTORS CORP.

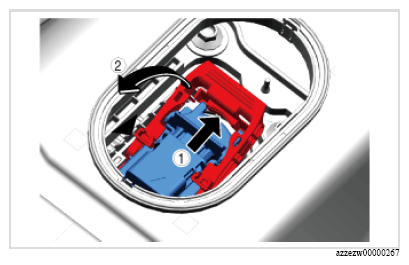

  3. Press the area indicated by arrow (1) shown in the figure, release the tabs, and then raise the lever until it is perpendicular.
    G16695036Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure

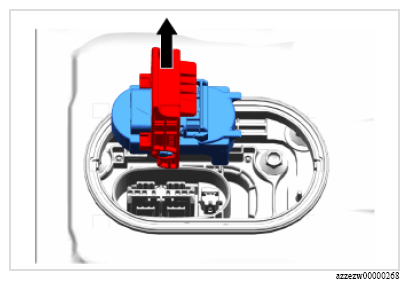

  4. Hold the lever and pull the service plug out straight up.
    G16695037Courtesy of MAZDA MOTORS CORP.
  5. After removing the service plug, leave it for 10 min.
