Connector connection note

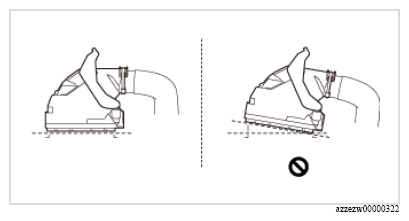

CAUTION:
  • Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
  • If the lever is moved with the PCM connector inserted at an angle, the connector itself may be damaged. Verify that the PCM connector is inserted straight.
G16707715Courtesy of MAZDA MOTORS CORP.

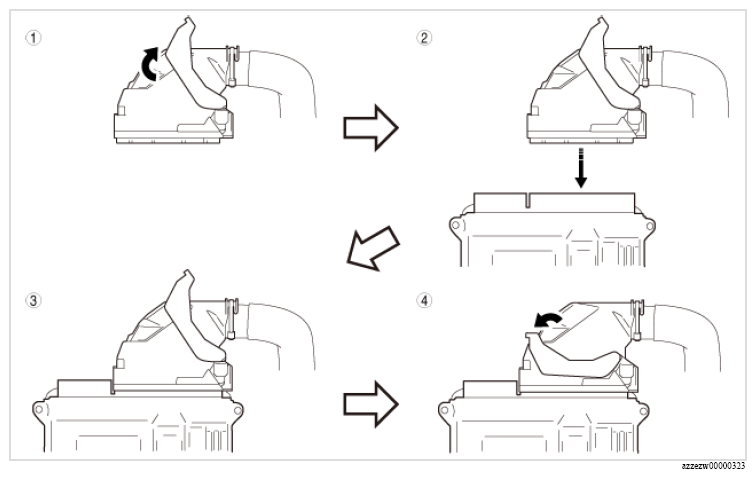

  1. Connect the connector shown in the figure.
G16707716Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
