Remove Spark Plug: Notes

Remove in the order indicated in the table.
- Remove the spark plugs using a plug-wrench.

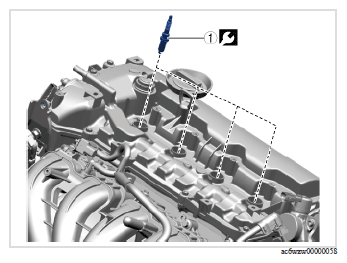

Fig 1: Spark Plug With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Spark plug (See SPARK PLUG INSTALLATION NOTE )	17.5 N.m {1.8 kgf.m, 12.9 ft.lbf}
