Intermediate Shaft Component Connection Note

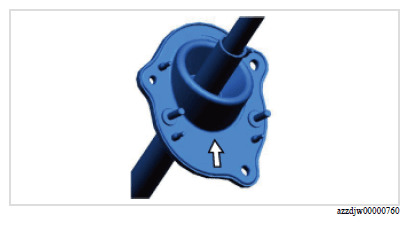

  1. Install with the arrow marks on the dust cover pointed upwards.
    G16712160Courtesy of MAZDA MOTORS CORP.

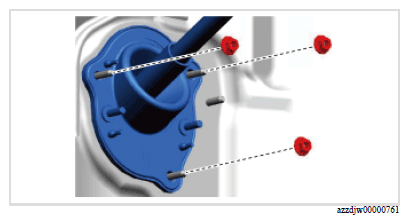

  2. Install the nuts.
    G16712161Courtesy of MAZDA MOTORS CORP.

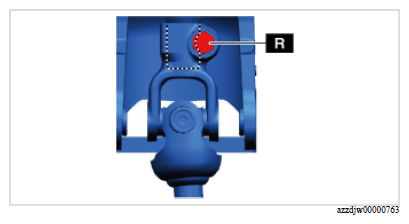

  3. Align with the U-shape groove of the steering column and install a new joint bolt.
    G16712162Courtesy of MAZDA MOTORS CORP.

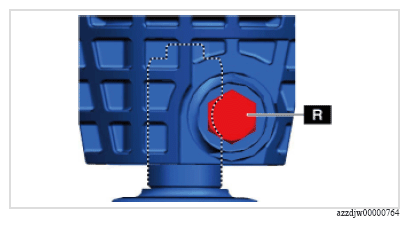

  4. Align with the U-shape groove of the steering gear (pinion) and install a new joint bolt.
G16701925Courtesy of MAZDA MOTORS CORP.
