EPS CM Assembly Note
CAUTION:
- Mount the O-ring so as not to damage it.
NOTE:
- Always perform the EPS CM auto configuration after replacing the EPS CM.
- Refer to the appropriate troubleshooting information for the procedure for using the M-MDS. (Refer to [ Configuration] in the appropriate troubleshooting information )

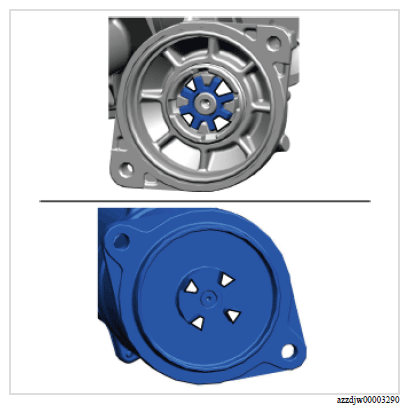

- Install the EPS CM so that the projection of the EPS CM (rotor) is engaged with the notch in the rubber.NOTE:
- If the projection of the EPS CM (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS CM projection (rotor).
- After temporary tightening until the bolt is seated, it is finally tightened.
