Steering Gear And Linkage Assembly: Notes

D-code

WARNING:
  • The temperature of the steering gear (EPS motor) is high just after turning the steering mechanism from lock to lock repeatedly, and it may cause severe burns. Before performing the work, verify that the steering gear has cooled down.
  • Install and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  • Be careful that liquid or foreign matter does not get inside the EPS CM and the steering column. Otherwise, the EPS CM motor could be damaged.
CAUTION:
  • If the steering wheel rotates after the steering shaft and the steering gear are disconnected, the internal parts of the clock spring could be damaged. After disconnecting the steering shaft, secure the steering wheel using tape or cable to prevent it from rotating.
  • The EPS will not operate normally if the EPS CM configuration is not completed. Always perform the EPS CM auto configuration after replacing the EPS CM so that the EPS will operate normally.
  • If the steering gear and linkage are stored in a humid place, the EPS system may not operate properly when installed to the vehicle. Store the steering gear and linkage in a suitable place.
  • If the EPS CM is dropped it could result in internal damage, therefore be careful not to drop it. If the EPS CM receives an impact, replace it.
NOTE:
  • The EPS CM stores the vehicle specification information.
  • A new EPS CM does not store the vehicle specification information.
  • When the main power is switched ON (READY off or on) after replacing the EPS CM, the EPS CM reads data from the instrument cluster via CAN communication to perform automatic configuration.
  • To completely cut off the power supply to the EPS system, do not disconnect the battery within 60s after the main power is switched OFF.
  • Do not replace the steering gear and linkage (EPS system) with that of another vehicle even if they are the same model.
  • Before connecting the EPS CM connector, Install the fuse or disconnect the battery to interrupt the power supply completely.
  • When the ignition is switched ON (engine off or on) after the EPS CM is replaced, the EPS CM reads the vehicle specification information sent via CAN communication from the instrument cluster and stores it.
  • Using the M-MDS, verify that DTCs U2300:54/U2300:55/U2300:56 are not displayed. If a Service Code is displayed, check for possible causes of the detected Service Code from top to bottom. (Refer to [DTC TABLE [EPS] ] in the appropriate troubleshooting information )
  1. Assemble in the order shown in the figure.

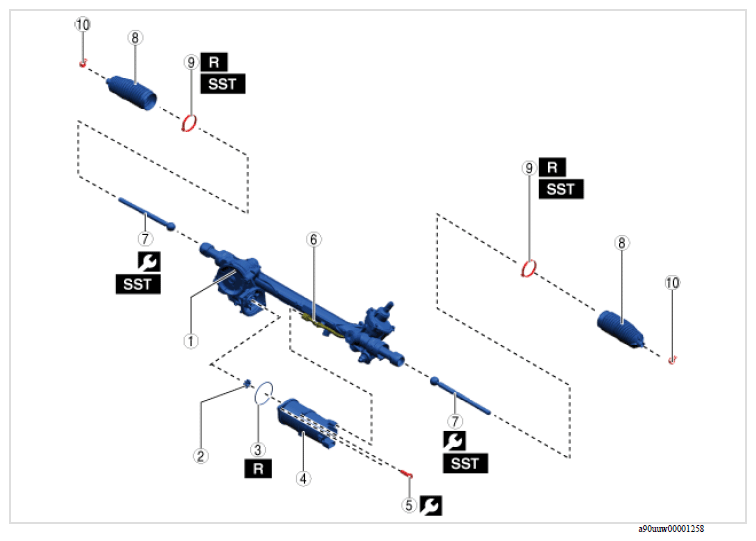

    Fig 1: Steering Gear And Linkage Assembly Components Location With Torque Specifications
    G16712164Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Procedure Part name Applicable condition
    1 Steering gear Continuous - - -
    2 Rubber Continuous - - -
    3 O-ring Continuous Replacement part - -
    4 EPS CM
    (See EPS CM Assembly Note ).    		 Continuous - - -
    5 Bolt Continuous - - 20 N.m {2.05 kgf.m, 14.75 ft.lbf}
    6 EPS CM connector Continuous - - -
    7 Tie rod
    (See Tie Rod Assembly Note ).    		 Continuous - 49 JP02 001 93 N.m {9.5 kgf.m, 68.75 ft.lbf}
    8 Boot Continuous - - -
    9 Boot band
    (See Boot Band Assembly Note ).    		 Continuous Replacement part 49 T025 001 -
    10 Boot clamp Continuous - - -
  2. Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION ).
  3. Install the front stabilizer. (See FRONT STABILIZER REMOVAL [AWD] .) (See FRONT STABILIZER INSTALLATION [AWD] .)
  4. For H3T, perform the following procedure:
    1. Install the Engine Component. (See ENGINE MOUNT REMOVAL/INSTALLATION [H3T] .)
    2. Install the member bracket. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [AWD] .)
    3. Install the radiator mount bracket. (See RADIATOR REMOVAL/INSTALLATION [H3T] .)
    4. Install the seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
    5. Install the intake air guide (upper). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
    6. Install the bracket (bumper upper side). (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
    7. Install the center seal plate. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
    8. Install the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
    9. Install the latch cover. (See FRONT BUMPER REMOVAL/INSTALLATION .)
    10. Install the edge rubber. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
    11. Install the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
    12. Install the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)
    13. Install the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
    14. Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
    15. Connect the ground plate. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    16. Perform the high voltage handling. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    17. Install the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
    18. Install the front under cover No. 3. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
    19. Install the front under cover No. 1. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
    20. Install the front under cover No. 2. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
    21. Install the air cleaner assembly. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    22. Install the engine compartment insulator (upper). (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    23. Install the strut tower bar. (See DRIVER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .) (See PASSENGER-SIDE STRUT TOWER BAR REMOVAL/INSTALLATION .)
    24. Install the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    25. Install the cowl grille bracket. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    26. Install the side cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
    27. Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
    28. Install the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION (L.H.D). .)
    29. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
    30. Install the cowl grille cover assembly. (See COWL GRILLE REMOVAL/INSTALLATION .)
    31. Install the capsule cover. (See ENGINE REMOVAL/INSTALLATION [H3T] .)
    32. Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  5. For PYUL, perform the following procedure:
    1. Install the Engine Component. (See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL] .)
